cleaning tanks
cleaning tanks

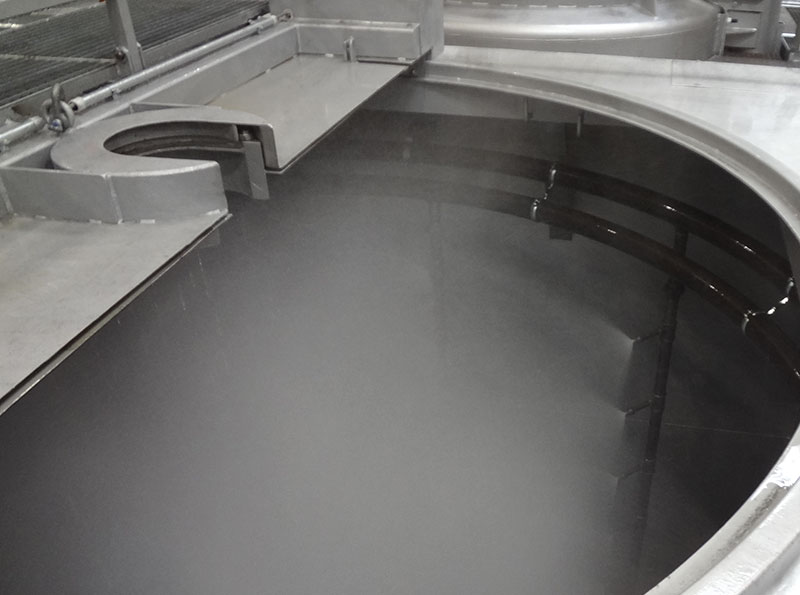

Cleaning tanks and washing systems are used for pre- or post-cleaning of components that are contaminated with emulsion. A high degree of reproducibility in the heat treatment process and compliance with environmental and occupational safety standards often make it necessary to remove any deposits from the component before starting the heat treatment.
If there are several loading stations, capacity can be increased by using separate, removable heating and cooling bonnets.
cleanliness is the basis of every process
Cleaning tanks reliably remove residues, oil, and dirt prior to heat treatment.
Result: Clean components for optimum surface quality.
effectiveness
various processes – e.g. chemical or ultrasonic
safety
furnace and component protection against residues and contamination
integration
can be combined with drying or preheating stations
technical specifications
Below you will find the most important technical details and advantages of our fully automated systems at one glance.

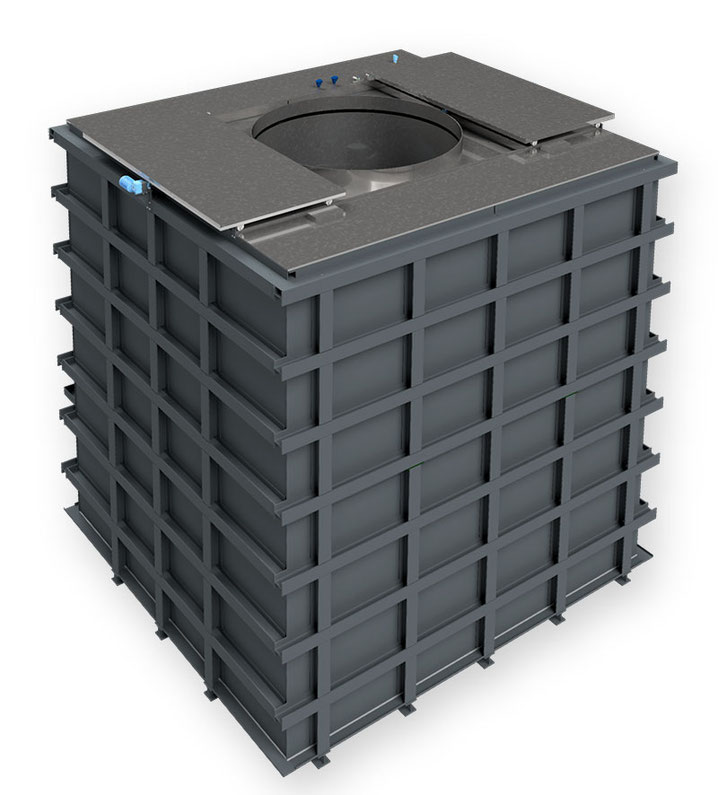

- design: square or round
- version: one, two, or three chambers possible
- heating type: electric
- cooling: heat exchanger and cooling station
- cleaning: circulation pumps with nozzle bars
- drying: via air nozzle bars
- air flow: vertical or horizontal
- processes: cleaning emulsion contaminated parts
- media: water and cleaning emulsion
- type: single or double walled
- charging: manual, semi-automatic or fully automatic
- lid: swivel or hinged lid, without lid
- sizes: from 200 m³
- temperatures: up to 90° C
- insulation: lightweight, with sheet metal cladding
advantages of our fully automated systems
maximum efficience
Our fully automated systems ensure maximum productivity and fast processing time.
flexibel process adaption
Our systems are individual configurable for tonnages and processes.
complete solution from one single source
All aditional components as a charging trolley for example are included.
future-proofed and reliable
State-of-the-art control, interfaces and a warranty up to 5 years.
optimize your industrial processes now
Do you plan a new production line or do you like to automate your existing furnace?
FAQ
What kind of cleaning-media and processes are available?
Depanding on the equipment: cleaning is carried out with water or cleaning emulsion, either partially or fully automated.
How large can the cleaning tanks be?
Sizes up to approx. 200 m³ are possible.
How is cleaning carried out (pumps, nozzles, etc.)?
Circulation pumps with nozzle bars distribute the cleaning medium; drying is carried out using air nozzle bars.
What is the maximum temperature?
Up to approx. 90 °C, depending on the medium and application.
